NETGEAR

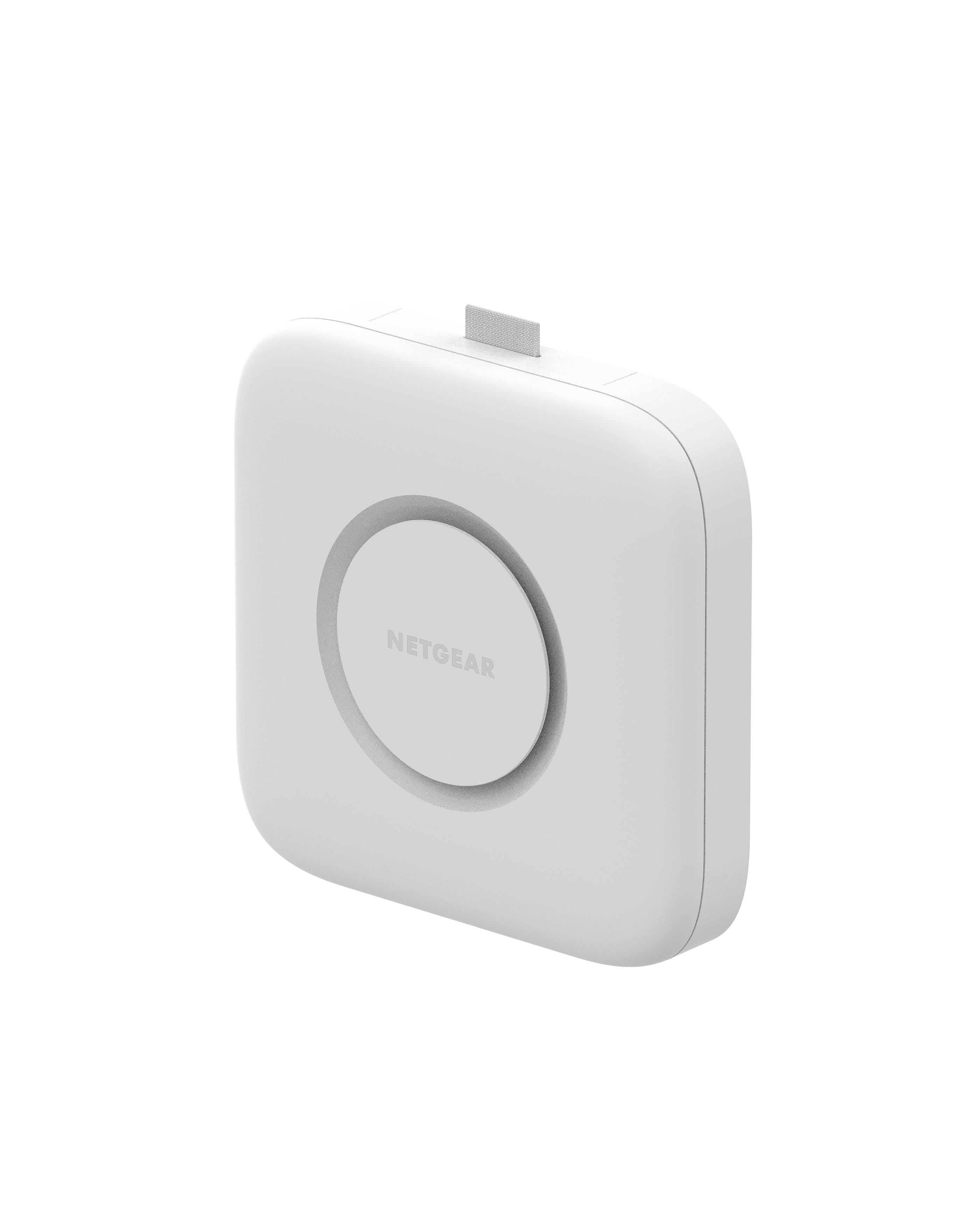

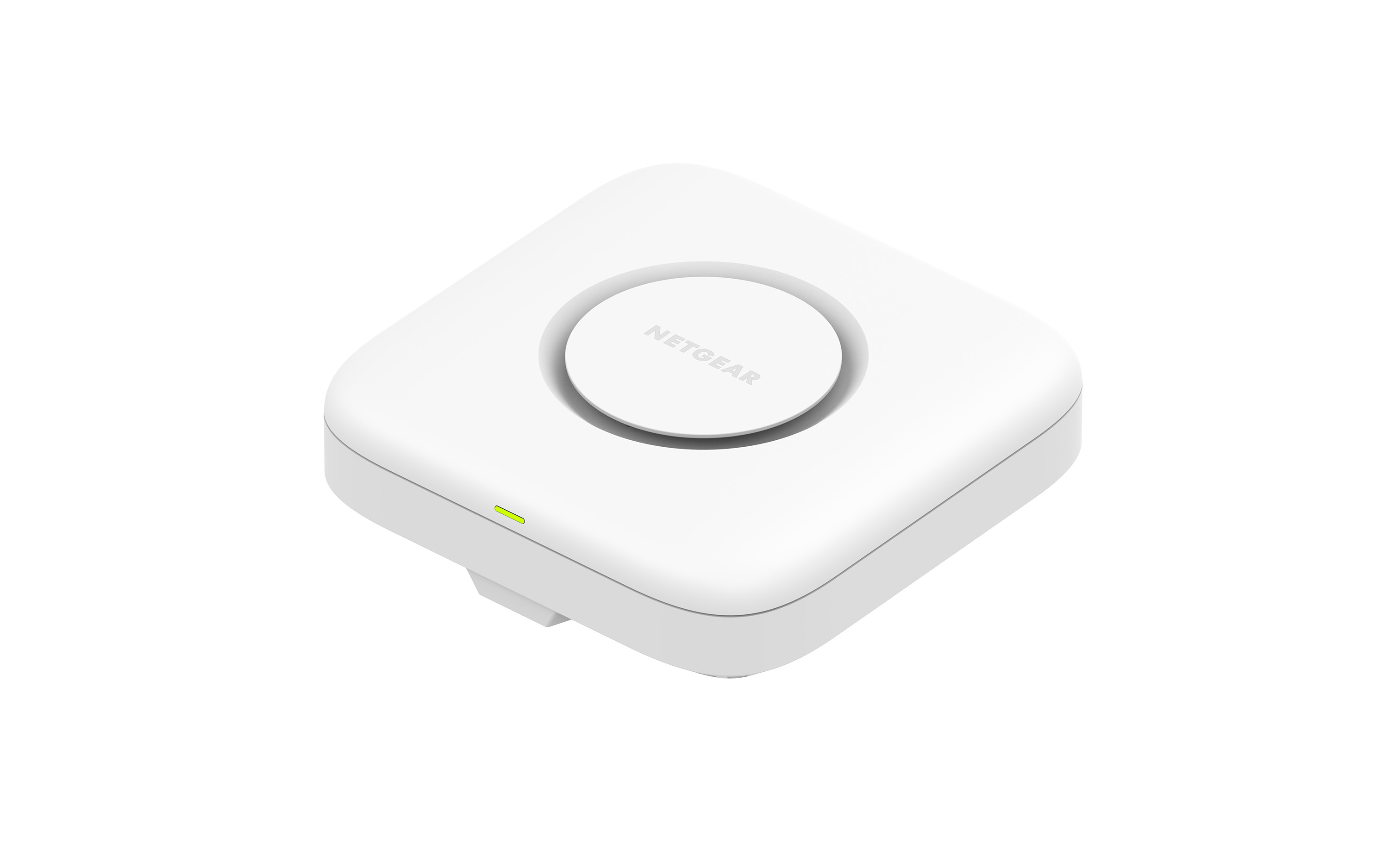

NETGEAR WBE710 Insight Managed Tri-Band WiFi 7 Access Point
OEM Part Number: WBE710-100EUS
WiFi 7 for High-Density Business Networks
The NETGEAR WBE710-100EUS is an Insight manageable tri-band WiFi 7 access point for business networks that need higher wireless capacity, fast client connectivity, and centralized management. It operates across the 2.4GHz, 5GHz, and 6GHz bands and supports up to 9.4Gbps of total theoretical wireless throughput.
Product Images
Designed for Busy Wireless Environments
The WBE710 is suited to higher-density deployments such as schools, hotels, restaurants, and conference centres. Its tri-band design supports smartphones, IoT devices, computers, and earlier-generation WiFi clients across a broader range of available channels.
- Business networks requiring WiFi 7 across 2.4GHz, 5GHz, and 6GHz.
- High-density environments with up to 200 users per radio and 600 users total.
- Deployments using NETGEAR Insight Cloud Management for setup, monitoring, and administration.
Tri-Band WiFi 7 Performance
WiFi 7 features include Multi-Link Operation, 4K QAM, OFDMA, BSS Coloring, Target Wake Time, and 320MHz channelization on the 6GHz band. The three 2x2 radios provide maximum theoretical throughput of 5,765Mbps on 6GHz, 2,882Mbps on 5GHz, and 688Mbps on 2.4GHz.
Cloud Management and Network Security
NETGEAR Insight Cloud Management supports setup, monitoring, troubleshooting, configuration, and firmware management through the Insight app or Cloud portal. Security and access-control capabilities include WPA2, WPA3, WPA2 Enterprise, WPA3 Enterprise, 802.1x RADIUS, MAC address filtering, VLAN support, Dynamic VLAN, guest networking, and captive portal support.
PoE Deployment
One 2.5G/Multi-Gigabit PoE+ Ethernet port supports 100M, 1G, and 2.5G connections. The access point supports IEEE 802.3af, 802.3at, and 802.3bt PoE standards, with maximum power consumption of 25W.
Specifications
| Product Type | Insight manageable tri-band WiFi 7 access point |
|---|---|
| Wireless Standard | WiFi 7 (IEEE 802.11be) |
| Wireless Throughput | Up to 9.4Gbps total theoretical throughput |
| Wireless Bands | 2.4GHz, 5GHz, and 6GHz |
| Radio Configuration | 2x2 in 6.0GHz, 2x2 in 5.0GHz, 2x2 in 2.4GHz |
| Ethernet Port | One 2.5G/Multi-Gigabit PoE+ port |
| Management | NETGEAR Insight Cloud Management |
| OEM Part Number | WBE710-100EUS |
| Wireless Performance and Capacity | |
|---|---|
| Model | WBE710 |
| WiFi Standards by Band | 6GHz: 802.11ax/be; 5GHz: 802.11a/n/ac/ax/be; 2.4GHz: 802.11b/g/n/ax/be |
| Backward Compatibility | 802.11b/g/b/n/a/ac/ax |
| Channelization | 6GHz: 20/40/80/160/320MHz; 5GHz: 20/40/80/160MHz; 2.4GHz: 20/40MHz |
| 6GHz Throughput | 5,765Mbps |
| 5GHz Throughput | 2,882Mbps |
| 2.4GHz Throughput | 688Mbps |
| Max Users | 200 per radio / 600 total |
| Antenna Gain | Internal 3.45/5.39/5.49 dBi (2.4GHz/5GHz/6GHz) |
| WiFi 7 Features | Multi-Link Operation (MLO), 4K QAM, and 320 MHz channel width operation in the 6 GHz band |
| OFDM/OFDMA | OFDM and OFDMA |
| BSS Coloring | Yes |
| Target Wake Time | Yes |
| WiFi Mesh | Instant WiFi Mesh wireless backhaul |
| Network, Power, and Physical Interfaces | |
| PoE Support | IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt |
| PoE Power Consumption | 25W |
| Power Adapter | 12V DC, 2.5A; not included |
| Physical Interface | One 2.5G/Multi-Gigabit PoE+ port compatible with 100M/1G/2.5G connections |
| LED | Single multi color LED |
| Security and Management | |
| Security | WPA2, WPA3, WPA2 Enterprise, WPA3 Enterprise, Dynamic VLAN, VLAN, MAC address filtering, 802.1x RADIUS support, Guest Network/Captive Portal |
| SSID Support | 8x SSID |
| Physical and Environmental | |
| Dimensions | 157 x 157 x 40 mm (6.2 x 6.2 x 1.6 in) |
| Weight | 0.69 kg (2.09 lb) |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Package, Entitlement, and Support | |
| Package Contents | WBE710 Insight Manageable Access Point, wall/ceiling mount kit, installation guide |
| Included Subscription | 1-Year Insight subscription included |
| Support Options | Sprint support option with 24/5 Technical Support and Advance RMA Replacement; Overdrive support option with 24/7 Technical Support, 2h SLA, and Next Business Day RMA Replacement |
| Hardware Limited Warranty | NETGEAR Enterprise Limited Lifetime warranty |
| Ordering Region | Europe |
